Performance Analysis of Transmission Line

Introduction

Electric Power Transmission is the bulk movement of electrical energy from a generating site, such as a power plant to an electrical substation. The interconnected lines which facilitate this movement are known as a transmission line network.

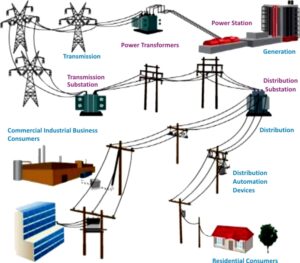

Transmission Line of Power
Benefits:
  • Entire transmission system can be simplified to a two port network for the sake of easier calculations
  • The behavior of transmission lines and its voltage and current under normal and abnormal conditions depends on A, B, C, D, Z and H parameters
  • Transmission line parameter simplifies the model and gives quite accurate result
  • Load flow study in transmission line
  • Analyzing protection schemes
  • Increase the system efficiency
  • Avoide any danger in complete system
Understand the Transmission Line Modelling and Analyzing the Power System:
  • Short, Medium and Long transmission line parameters
  • Ferranti effect in long transmission line
  • Performance of transmission line under different loads

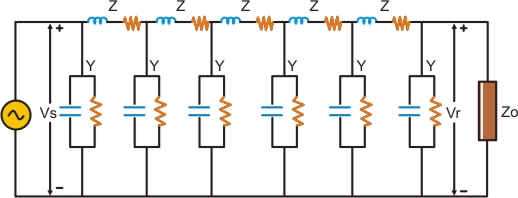

Conventional Implementation of Long Transmission Line
Practical Setup for Transmission Line(Nvis 7063)
