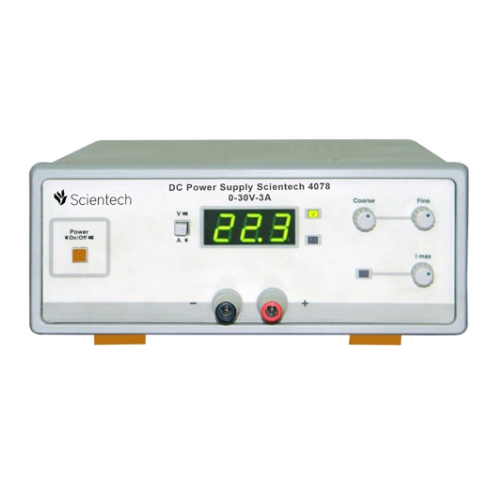

| Specification | Value |
|---|---|
| DC Output | 0 – 30 V continuously variable by means of Coarse and Fine controls |
| Current Limit | 0 – 3 A Continuously adjustable |
| Setting Resolution | Voltage: 100 mV Current: 10 mA |
| Stability | 2.5 mV at 30 V / 3 A |
| Recovering Time | ≤50 μs |
| Load Regulation | ±(0.05 % +10 mV) |
| Line Regulation | ±(0.05% +10 mV) |
| Temperature Coefficient | ±(0.05 % + 5 mV / °C) |
| Ripple and Noise | ≤1 mVrms |
| Display | 3 digit seven segment LED display for voltage and current |
| Accuracy | ±(1% + 1 digit) |
| Over Range Indication | By flashing ‘OR’ LED |
| General Information | |
| Output Floating | Switchable from the front panel |
| Protection | Built-in overheat, over voltage, overload and short circuit protection |
| Insulation (Chassis) | Between chassis & output terminals > 10 MΩ at 500 V DC Between chassis & AC plug > 50 MΩ at 500 V DC |
| Power Supply | 230 V ±10 %, 50 Hz / 60 Hz |
| Operating Temperature | 0-40° C, 80% RH |
| Dimensions (mm) | W 198 × D 278 × H 90 |
| Weight | 4.5 Kg approximately |
| Product Tutorial | Online on www.ScientechLearning.com |
| Included Accessories | |
| Main Cord | 1 no. |
