Rigol DS1054Z 50MHz Digital Oscilloscope

50MHz Digital Oscilloscope

DS1054Z

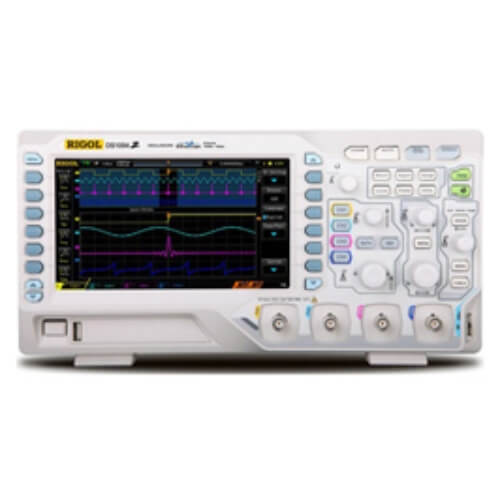

The DS1054Z is a 50MHz, 1GSa/s, 4-channel digital oscilloscope offering a powerful combination of quality, performance and functionality – It’s excellent value for money. Features include; high memory depth, wide dynamic range, clear display, excellent waveform capture rate, comprehensive triggering functions, auto measurements with statistics, various maths functions including the FFT, pass / fail test and various remote communications interfaces. A dedicated front-panel key enables easy printing to PictBridge compatible printers. Internal and external storage of screen dumps, raw data and instrument set-ups is also supported.

Features

Bandwidth: 50 MHz
Analog Channels: 4
Real Time Sampling: 1 Gsa/sec
Memory: 24 Mpts
Waveform Capture Rate: 30,000 wfms/s
Vertical Resolution: 8 bits
Vertical Scale: 1 mV/div to 10 V/div
Timebase Scale: 5 ns/div to 50 s/div
Serial Bus Decoding: RS232/UART, I2C, SPI
Display: 7 inch WVGA (800×480) TFT LCD
Connectivity: USB Host & Device, LAN

Model

Model	Bandwidth	Analog Channels	Real-Time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels	Built-In Signal Source
DS1054Z	50MHz	4	1GSa/s	24Mpts	30,000wfm/s	–	–
DS1074Z Plus	70MHz	4	1GSa/s	24Mpts	30,000wfm/s	16 (Probe opt.)	–
DS1074Z-S Plus	70MHz	4	1GSa/s	24Mpts	30,000wfm/s	16 (Probe opt.)	2CH
DS1104Z Plus	100MHz	4	1GSa/s	24Mpts	30,000wfm/s	16 (Probe opt.)	–
DS1104Z-S Plus	100MHz	4	1GSa/s	24Mpts	30,000wfm/s	16 (Probe opt.)	2CH

Probe

Passive Probe

Model	Description
PVP3150	150MHz, 10:1/1:1, Passive high resistance probe (Single pack)
RP1010H	10kV 50MHz High voltage probe
RP1018H	18kV 150MHz High voltage probe
RP1300H	300MHz High voltage probe (2kV)
PVP2150	150MHz, 10:1/1:1, Passive high resistance probe (Single strip)
PVP2350	350MHz, 10:1/1:1, Passive high resistance probe (Single strip)

Current Probe

Model	Description
RP1000P	4CH Power Adapter
RP1005C	10MHz, 150A
RP1004C	100MHz, 30A
RP1003C	50MHz, 30A
RP1002C	1MHz, 70ADC
RP1001C	300KHz, 100A DC

High Voltage Differential Probe

Model	Description
PHA1150	High voltage differential probe, DC-100MHz, 1500V
PHA0150	High voltage differential probe, DC-70MHz, 1500V
RP1100D	100MHz, 6.5KV
RP1050D	50MHz, 6.5KV
RP1025D	25MHz, 1.4KV
